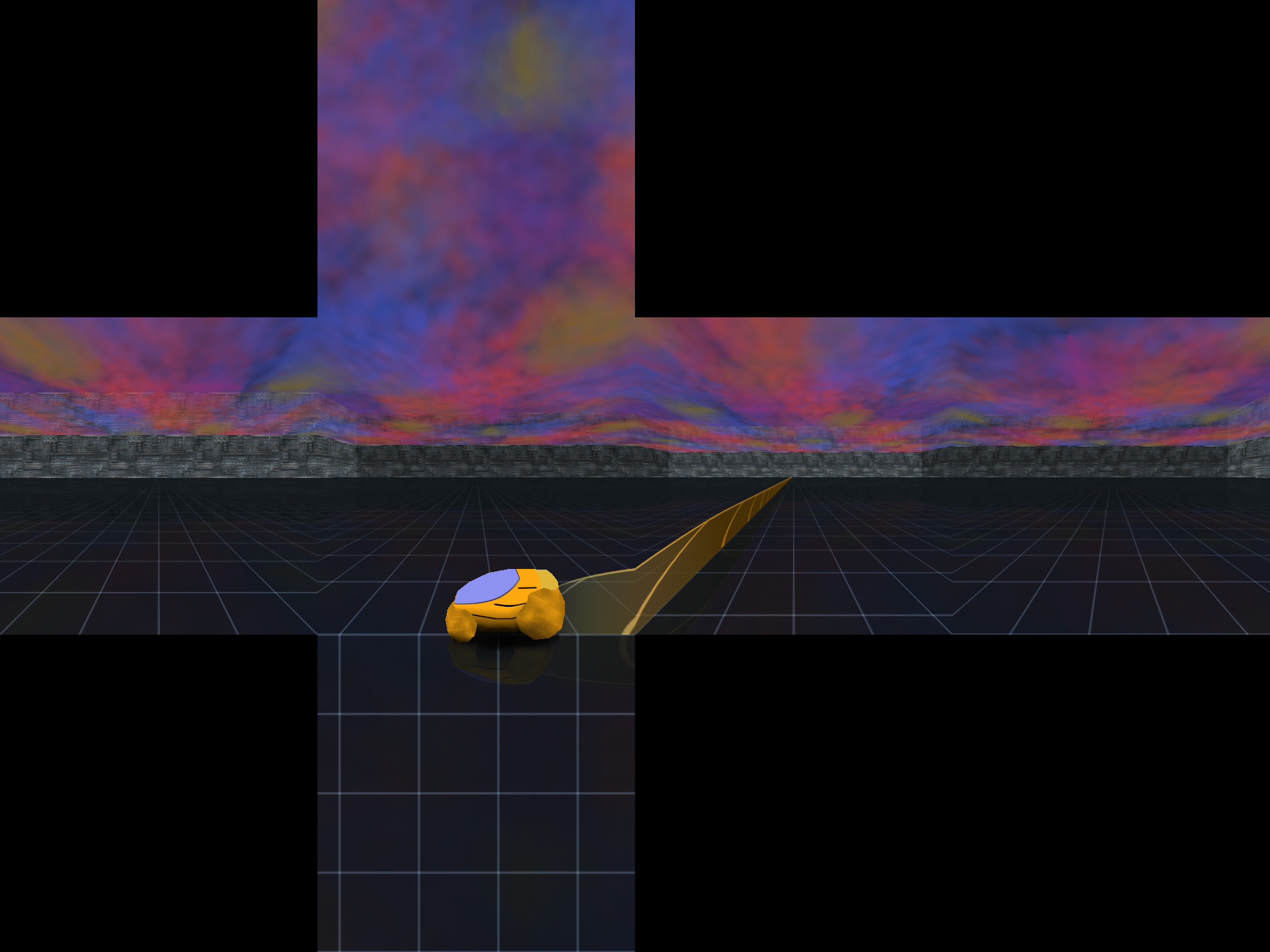

Cube map screenshot

[Jonathan]

[Lackadaisical]

That is ridiculously awesome


edit: could you make one with the new textures from 0.2.8 ?

[Jonathan]

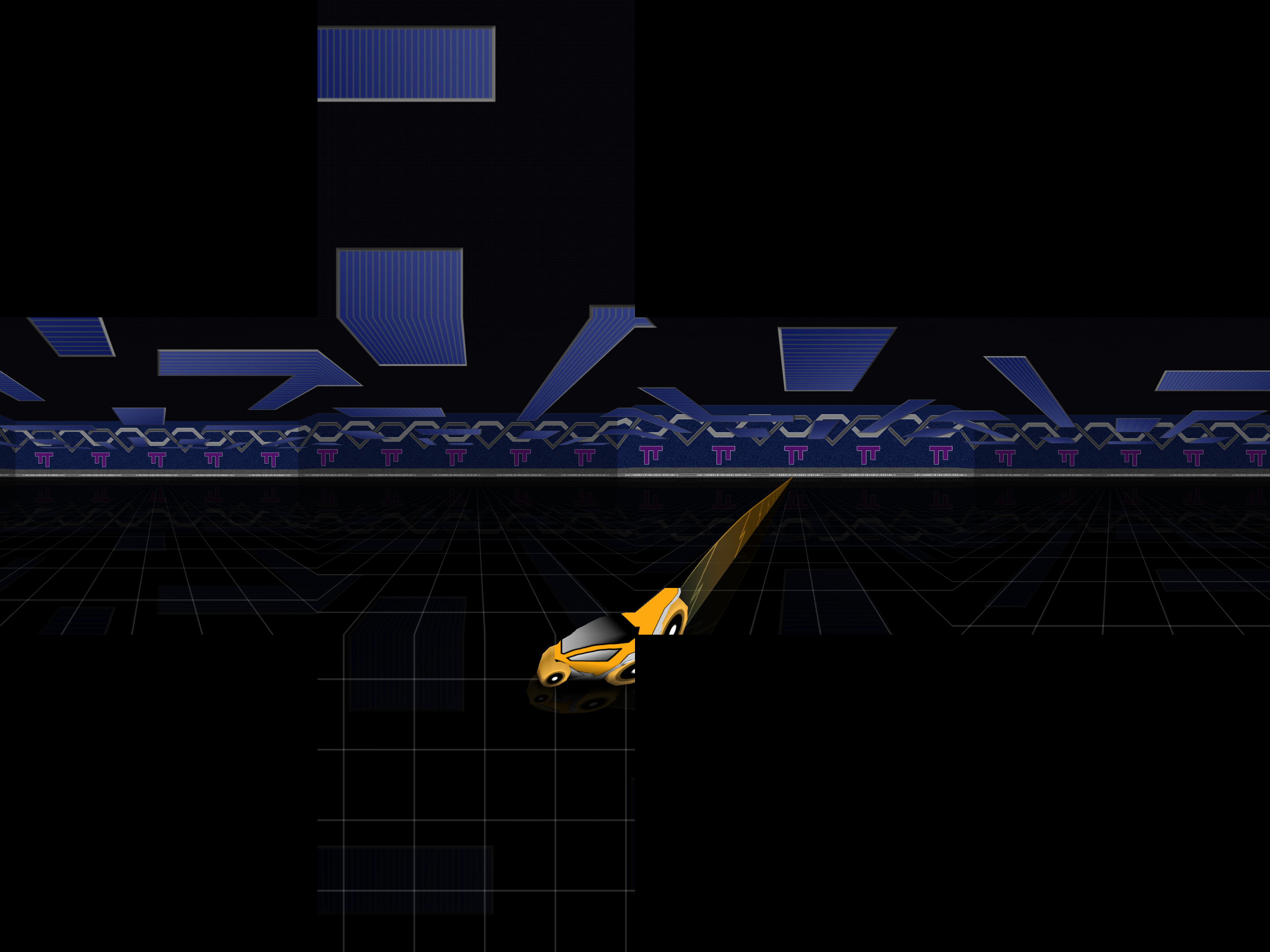

There you go. It's also slightly larger.

Aren't cornered cycles pretty?

[Jonathan]

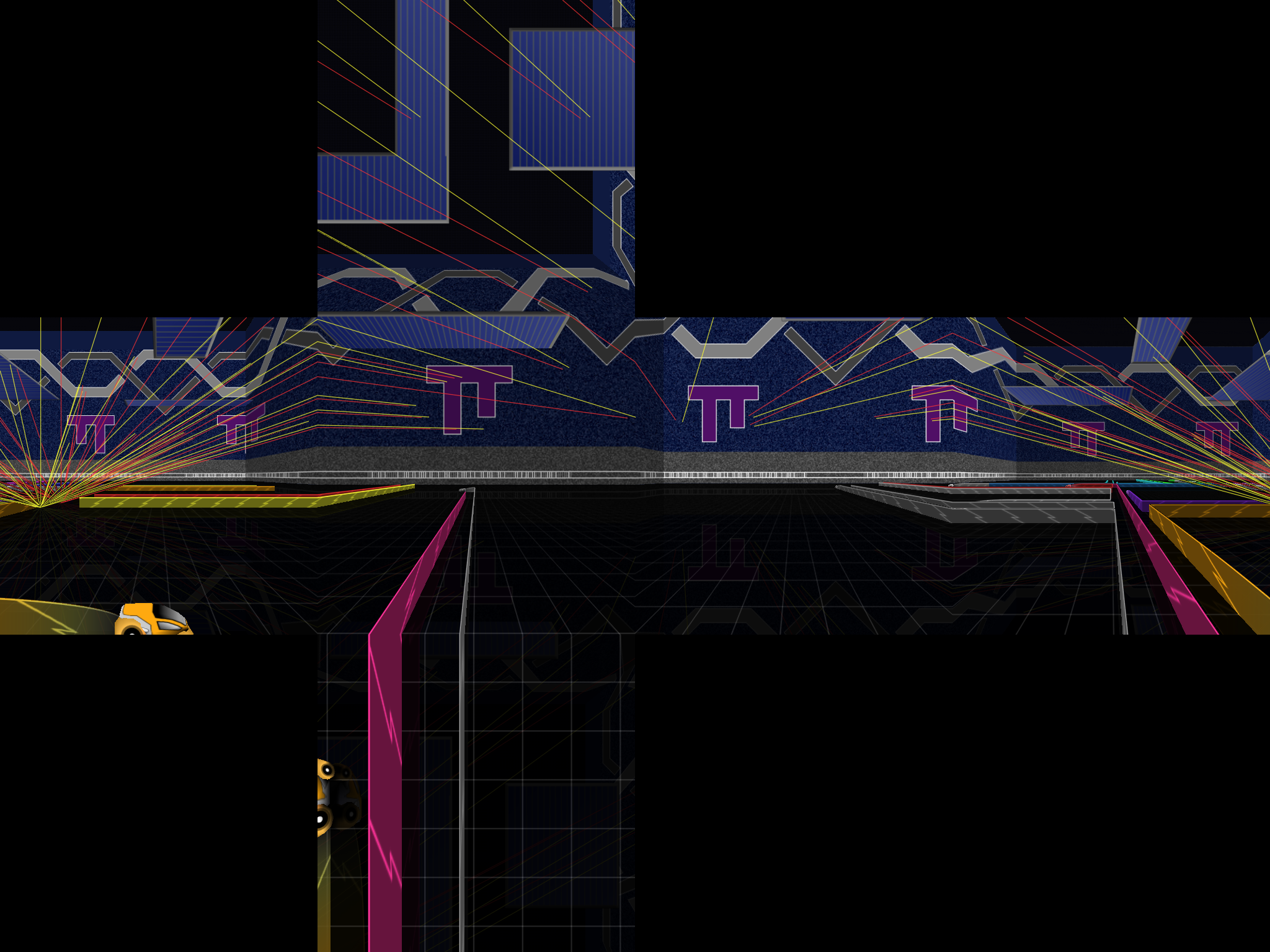

Playing with 20 bots (19 + my chatbot). Smaller again because PNG doesn't compress the action as well.

[Tank Program]

I'm confused by what I'm seeing eactly, but oh well... Is this like what you'd use in a cube display?

[Jonathan]

Yep.

[Lacrymosa]

Very nice, hehe.
Print it out and try to make a cube.

[Jonathan]

If you do that, don't forget to make the unused space white. And you should mirror it if you intend to use the outside.

[Jonathan]

Source.

Code: Select all

#include "defs.h"

#include "tConfiguration.h"
#include "rGL.h"
#include "eGrid.h"
#include "eCamera.h"

#include <png.h>

#define CUBE_SIZE 512

static float matrices[6][16] = {
	{ 0,  0, -1,  0, // +x
	 -1,  0,  0,  0,
	  0,  1,  0,  0,
	  0,  0,  0,  1},

	{ 0,  0,  1,  0, // -x
	  1,  0,  0,  0,
	  0,  1,  0,  0,
	  0,  0,  0,  1},

	{ 1,  0,  0,  0, // +y
	  0,  0, -1,  0,
	  0,  1,  0,  0,
	  0,  0,  0,  1},

	{-1,  0,  0,  0, // -y
	  0,  0,  1,  0,
	  0,  1,  0,  0,
	  0,  0,  0,  1},

	{ 0, -1,  0,  0, // +z
	 -1,  0,  0,  0,
	  0,  0, -1,  0,
	  0,  0,  0,  1},

	{ 0,  1,  0,  0, // -z
	 -1,  0,  0,  0,
	  0,  0,  1,  0,
	  0,  0,  0,  1}
};

static const char *prefix = "/blah";
static const char names[6][3] = {"+x", "-x", "+y", "-y", "+z", "-z"};

static void process_image(unsigned char *ptr, unsigned size) {
	unsigned char *iptr = ptr;
	unsigned i, sq = size * size;
	for(i=0; i<sq; i++) {
		ptr[0] = iptr[1];
		ptr[1] = iptr[2];
		ptr[2] = iptr[3];
		iptr += 4;
		ptr += 3;
	}
}

static void camera_pos(REAL &x, REAL &y, REAL &z, eCamera *cam) {
	eCoord pos_diff = cam->Glance(cam->pos, cam->glanceDir_);
	eCoord glancedir = cam->dir.Turn(cam->glanceDir_);

	x = pos_diff.x + glancedir.x;
	y = pos_diff.y + glancedir.y;
	z = cam->z + cam->rise;
}

static void take_cubemap(std::istream &s) {
	float zNear = 1;
	eGrid *grid = eGrid::CurrentGrid();
	const tList<eCamera>& cameras = grid->Cameras();
	if(cameras.Len() < 1) {
		con << "No cameras\n";
		return;
	}
	eCamera *camera = cameras(0);
	glViewport(0, 0, CUBE_SIZE, CUBE_SIZE);
	glMatrixMode(GL_MODELVIEW);
	glLoadIdentity();
	glMatrixMode(GL_PROJECTION);
	glLoadIdentity();
	glFrustum(-1, 1, -1, 1, zNear, 1E+20);
	unsigned i;
	unsigned char *buf = (unsigned char *)malloc(CUBE_SIZE*CUBE_SIZE*4);
	if(!buf) {
		con << "Couldn't allocate enough\n";
		return;
	}
	for(i=0; i<6; i++) {
		glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
		glPushMatrix();
		glMultMatrixf(matrices[i]);
		REAL x, y, z;
		camera_pos(x, y, z, camera);
		glTranslatef(-x, -y, -z);
		glMatrixMode(GL_MODELVIEW);
		grid->Render(camera, 0, zNear);
		glMatrixMode(GL_PROJECTION);
		glPopMatrix();
		glReadPixels(0, 0, CUBE_SIZE, CUBE_SIZE, GL_BGRA_EXT, GL_UNSIGNED_INT_8_8_8_8_REV, buf);
		// On my hardware:
		// AGP texture trick instead of glReadPixels: very, very fast
		// ARGB (used here) : 200+ MiB/s
		// Other 4-component: 130 MiB/s
		// 3-component      : 16 MiB/s (that's why I do my own reduction)
		process_image(buf, CUBE_SIZE);
		char path[64]; // Not large, but large enough for me
		snprintf(path, sizeof path, "%s/%s.png", prefix, names[i]);
		FILE *fp = fopen(path, "wb");
		if(!fp) {
			con << "No FILE\n";
			continue;
		}
		png_structp png_ptr = png_create_write_struct(PNG_LIBPNG_VER_STRING, 0, 0, 0);
		if(!png_ptr) {
			fclose(fp);
			con << "No write struct\n";
			continue;
		}
		png_infop info_ptr = png_create_info_struct(png_ptr);
		if(!info_ptr) {
			png_destroy_write_struct(&png_ptr, png_infopp_NULL);
			fclose(fp);
			con << "No info struct\n";
			continue;
		}
		if(setjmp(png_jmpbuf(png_ptr))) {
			png_destroy_write_struct(&png_ptr, &info_ptr);
			fclose(fp);
			con << "Jumped\n";
			continue;
		}
		png_init_io(png_ptr, fp);
		png_set_IHDR(png_ptr, info_ptr, CUBE_SIZE, CUBE_SIZE, 8, PNG_COLOR_TYPE_RGB,
					 PNG_INTERLACE_NONE, PNG_COMPRESSION_TYPE_BASE, PNG_FILTER_TYPE_BASE);
		png_set_gAMA_fixed(png_ptr, info_ptr, 55556);
		png_write_info(png_ptr, info_ptr);
		unsigned j;
		for(j=CUBE_SIZE-1; j<CUBE_SIZE; j--)
			png_write_row(png_ptr, buf + 3 * CUBE_SIZE * j);
		png_write_end(png_ptr, info_ptr);
		png_destroy_write_struct(&png_ptr, &info_ptr);
		fclose(fp);
	}
	free(buf);
}

static tConfItemFunc cube_func("CUBE", &take_cubemap);

Requires that eCamera be opened up. It's also dirty in a few ways, but it works for me.
