HUD map

[TiTnAsS]

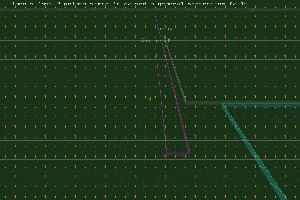

can hardly tell where edges are and which are real walls and which are
minimap walls

[Jonathan]

can hardly tell where edges are and which are real walls and which are
minimap walls

On the small map at the bottom right it's generally OK. The big map is just an example. But it is easy to add a filled background.

[TiTnAsS]

ah

[Jonathan]

One way to get a background:

Code: Select all

void DrawMap(bool rimWalls, bool cycleWalls, bool cycles,
             double cycleSize, double border,
             double x, double y, double w, double h,
             double rw, double rh, double ix, double iy,
             GLfloat r, GLfloat g, GLfloat b, GLfloat a) {
...
	glMultMatrixf(m);
	if(a > 0) {
		glColor4f(r, g, b, a);
		glRectf(lx, ly, hx, hy);
	}
	if(rimWalls)

[Jonathan]

Only 600.

Edit: Currently my code:

Code: Select all

#define DONTDOIT
#include "rRender.h"
#include "rScreen.h"
#include "tConfiguration.h"
#include "eFloor.h"
#include "eTimer.h"

void DrawMap(bool rimWalls, bool cycleWalls, bool cycles,
             double cycleSize, double border,
             double x, double y, double w, double h,
             double rw, double rh, double ix, double iy,
             GLfloat r, GLfloat g, GLfloat b, GLfloat a);

static int simplemapmode = 0;
static tConfItem<int> simplemapmode_con("SIMPLE_MAP", simplemapmode);

static void drawsimplemap() {
	if(!se_mainGameTimer) return;
	// I haven't checked possible initial matrix state, so init to identity and modelview
	glMatrixMode(GL_PROJECTION);
	glLoadIdentity();
	glMatrixMode(GL_MODELVIEW);
	glLoadIdentity();
	if(simplemapmode & 1)
		DrawMap(true, true, true,
		        5.5, 10,
		        .5, -1, .5, .5 * sr_screenWidth / sr_screenHeight,
		        .25 * sr_screenWidth, .25 * sr_screenWidth, 1, 0,
		        0, 0, 0, 0);
	if(simplemapmode & 2) {
		REAL r, g, b;
		se_FloorColor(r, g, b);
		DrawMap(true, true, true,
		        5.5, 10,
		        -1, -1, 2, 2,
		        sr_screenWidth, sr_screenHeight, .5, .5,
		        r, g, b, .5);
	}
	if(simplemapmode & 4) {
		REAL r, g, b;
		se_FloorColor(r, g, b);
		unsigned xcount=30;
		unsigned ycount=20;
		unsigned x, y;
		for(y=0; y<ycount; y++) {
			for(x=0; x<xcount; x++) {
				DrawMap(true, true, true,
				        5.5, 10,
				        2.0 / xcount * x - 1, 2.0 / ycount * y - 1, 2.0 / xcount, 2.0 / ycount,
				        2.0 / xcount * sr_screenWidth, 2.0 / ycount * sr_screenHeight, x / (xcount - 1.0), y / (ycount - 1.0),
				        r, g, b, .5);
			}
		}
	}
}

static rPerFrameTask simplemaptask(&drawsimplemap);

[Jonathan]

It's posted now for a few days. Got it working?

[Jonathan]

I think I found some problems. Expect an updated version.

[Jonathan]

Don't laugh if you spot the errors.

Code: Select all

static void DrawWalls(tList<gNetPlayerWall> &list) {
	unsigned i, len=list.Len();
	double currentTime = se_GameTime();
	double wallsLength = gCycle::WallsLength();
	double wallsStayUpDelay = gCycle::WallsStayUpDelay();
	bool limitedLength = wallsLength > 0;
	glBegin(GL_LINES);
	for(i=0; i<len; i++) {
		gNetPlayerWall *wall = list[i];
		gCycle *cycle = wall->Cycle();
		if(!cycle) continue;
		double alpha = 1;
		if(!cycle->Alive() && wallsStayUpDelay >= 0) {
			alpha -= 2 * (currentTime - cycle->DeathTime() - wallsStayUpDelay);
			if(!(alpha > 0)) continue;
		}
		glColor4f(cycle->color_.r, cycle->color_.g, cycle->color_.b, alpha);
		double cycleDist = cycle->GetDistance();
		double minDist = limitedLength && cycleDist > wallsLength ? cycleDist - wallsLength : 0;
		const eCoord &begPos = wall->EndPoint(0), &endPos = wall->EndPoint(1);
		tArray<gPlayerWallCoord> &coords = wall->Coords();
		double begDist = wall->BegPos();
		double lenDist = wall->EndPos() - begDist;
		unsigned j, numcoords = coords.Len();
		if(numcoords < 2) continue;
		bool prevDangerous = coords[0].IsDangerous;
		double prevDist = coords[0].Pos;
		if(prevDist < minDist) prevDist = minDist;
		prevDist = (prevDist - begDist) / lenDist;
		for(j=1; j<numcoords; j++) {
			bool curDangerous = coords[j].IsDangerous;
			double curDist = coords[j].Pos;
			if(curDist < minDist) curDist = minDist;
			curDist = (curDist - begDist) / lenDist;
			if(prevDangerous) {
				glVertex2f(begPos.x + prevDist * (endPos.x - begPos.x), begPos.y + prevDist * (endPos.y - begPos.y));
				glVertex2f(begPos.x +  curDist * (endPos.x - begPos.x), begPos.y +  curDist * (endPos.y - begPos.y));
			}
			prevDangerous = curDangerous;
			prevDist = curDist;
		}
	}
	glEnd();
}

Edit: tweaked the code in glVertex2f a bit. Only six fp instructions if you have multiply-adds and a smart compiler.

[Lucifer]

Ummmmm, I remember reading somewhere that this was put in cvs. How do I enable it? Is it in the 0.2.8 branch, or head?

[Jonathan]

Don't know where in CVS, but grep for HUD_MAP switches.

[Lucifer]

Not in the branch, apparently. Anybody happen to know why? I thought we were going to go ahead and include it in 0.2.8....

[Z-Man]

Don't look at me, it wasn't me who put it in CVS. The code came in pretty late, so I guess it would have been something with the feature freeze.

[Lucifer]

So, I put #define HUD_MAP in gWall.h, but no hud map. ?

[Jonathan]

Are you sure gWall.h is included before any related #ifs? (obvious, but nemo fell in the same trap)

[Lucifer]

Aha. There's an #ifdef HUD_MAP before the gWall.h include. Got it, thanks!
